Digital Display Time Relay Square Programmable Delay Timer 110V 220V 380V AC DH48S(JSS48A) 0.1S-99h Cycle Control with Base 2. Microcomputer LCD Digital Display Timer Relay Switch Programmable Digital Timer

Descriptions:

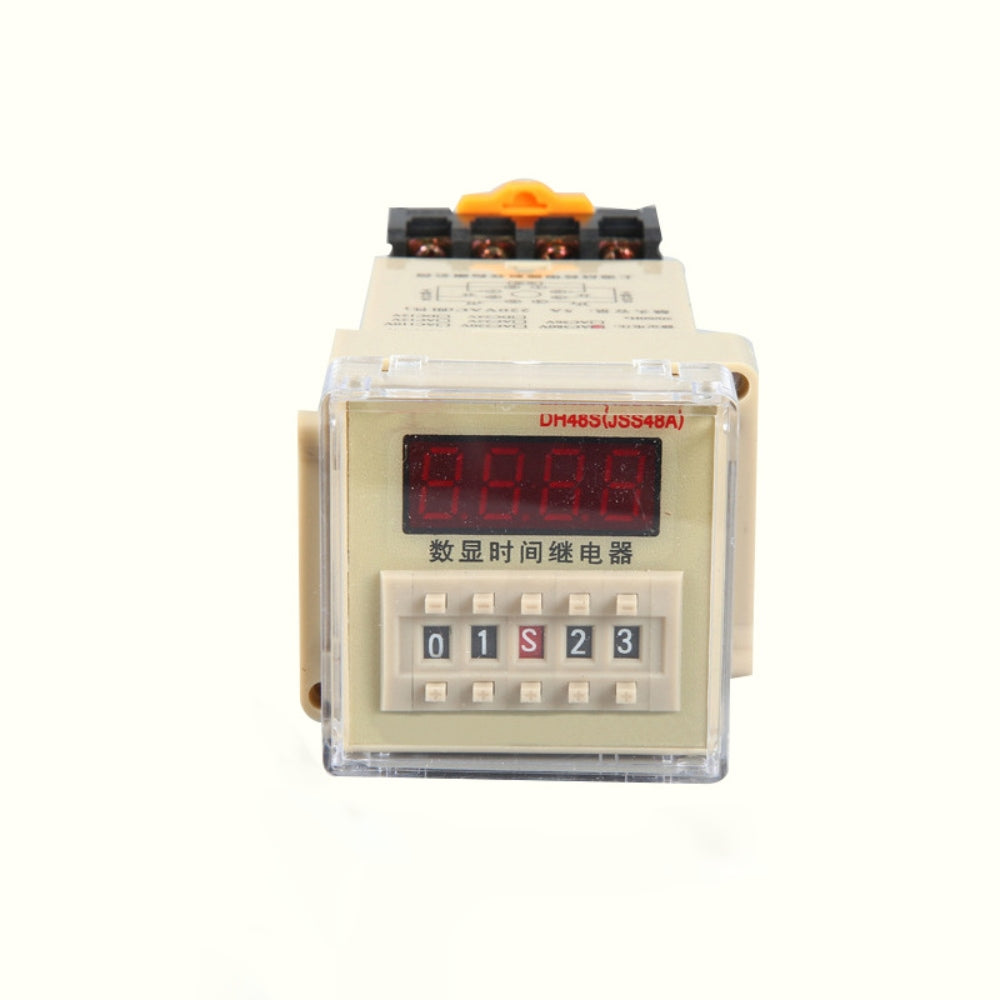

Digital Display Time Relay Square Programmable Delay Timer 110V 220V 380V AC DH48S (JSS48A) 0.1S-99h Cycle Control with Base

Specifications:
Rated Voltage: AC 110/220/380V DC 12/24V
Delay Control Accuracy: ≤0.3%±0.05s
Contact Capacity: AC 220V 5A (Resistive load) DC 220V 5A (Resistive load)
Ambient Temperature: -10°C~50°C
Power: ≤5W
Altitude: <2000m

This time relay is applied in advertising lamp, industrial mining, and mechanical equipment.
LED Display - High brightness, high clear LED digital tube display, it can be can be seen clearly no matter day or night.
Flexible Adjust Button - Elastic button, suitable for wide spacing, quick adjustment, easy to operate.
Relay and Transformer - Both adopted of pure copper wire material.
The relay control time is 0.1sT99H, and with small power consumption, less than 5W.

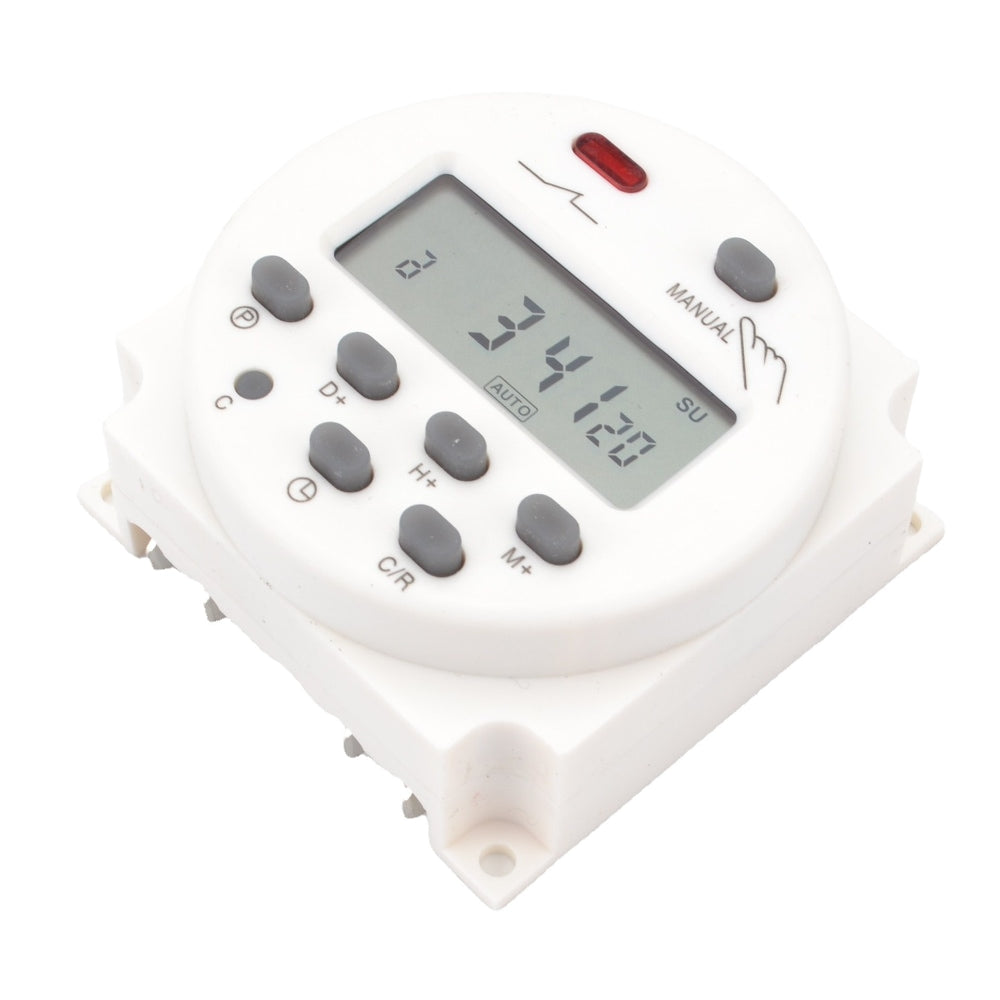

Microcomputer LCD Digital Display Timer Relay Switch Programmable Digital Timer

Rated Voltage (INPUT): 12/24V DC and 110/220V AC; Power: 7.5W (MAX); Contact Capacity: 16A
Full Time Range: 1Min-168Hours; Programmable: provides 17 on/off periods each day; Switching Contact: 1 changeover switch
Hysteresis: 2 sec/day (25°C)
Internal battery: 5 years (Lithium battery)
Display: LCD
Power failure memory: 60days; Operate Temperature: -10 to +40 C; Ambient Humidity: 35~85%RH
Material: Plastic, Electronic Parts;
Dimensions: 60x60x32mm, Net weight: approx. 66g
Package Content: 1xTimer Switch, Screws

Digital electronic timer switch with daily programing function.
Supports a pre-setting one week before.
Supports repeat programing with 17 on/off setting and manual over-ride.
Features a lithium battery power reserve when electric supply cut off.
Supports an auto timer error correction+30sec per week.
