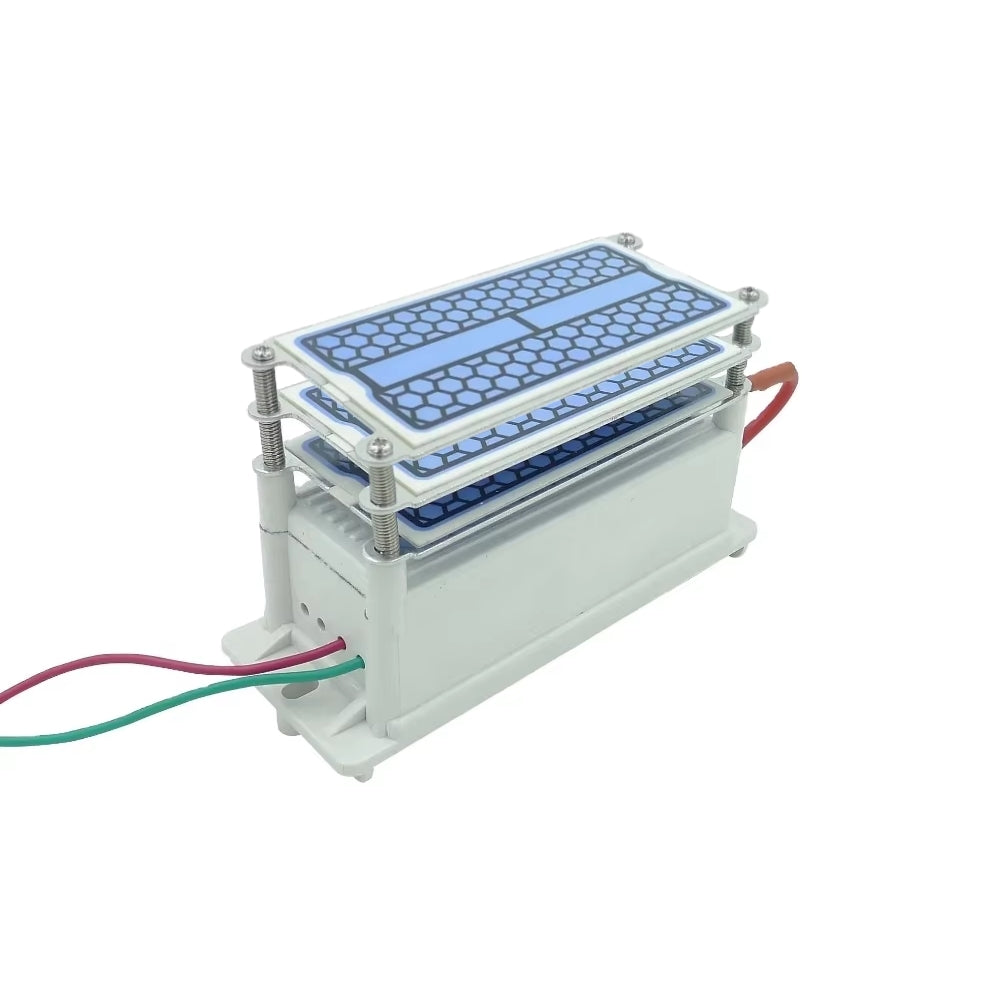

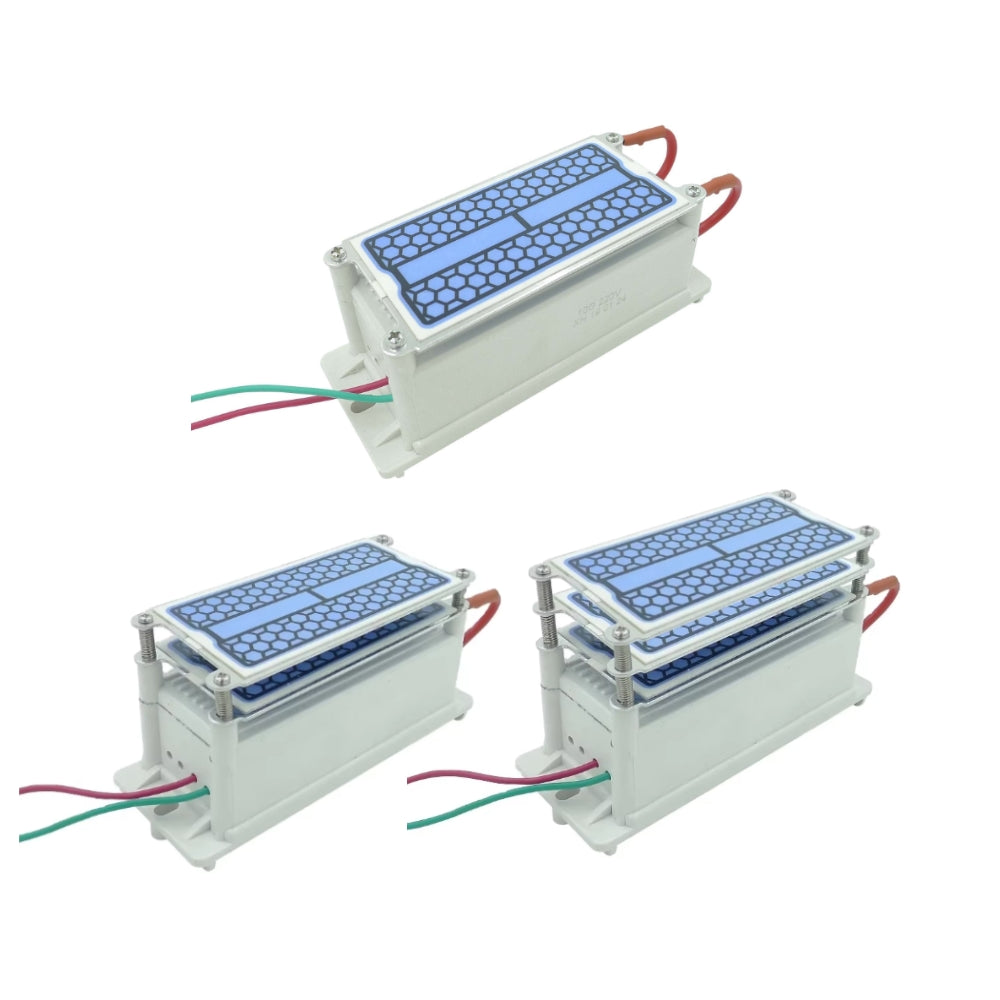

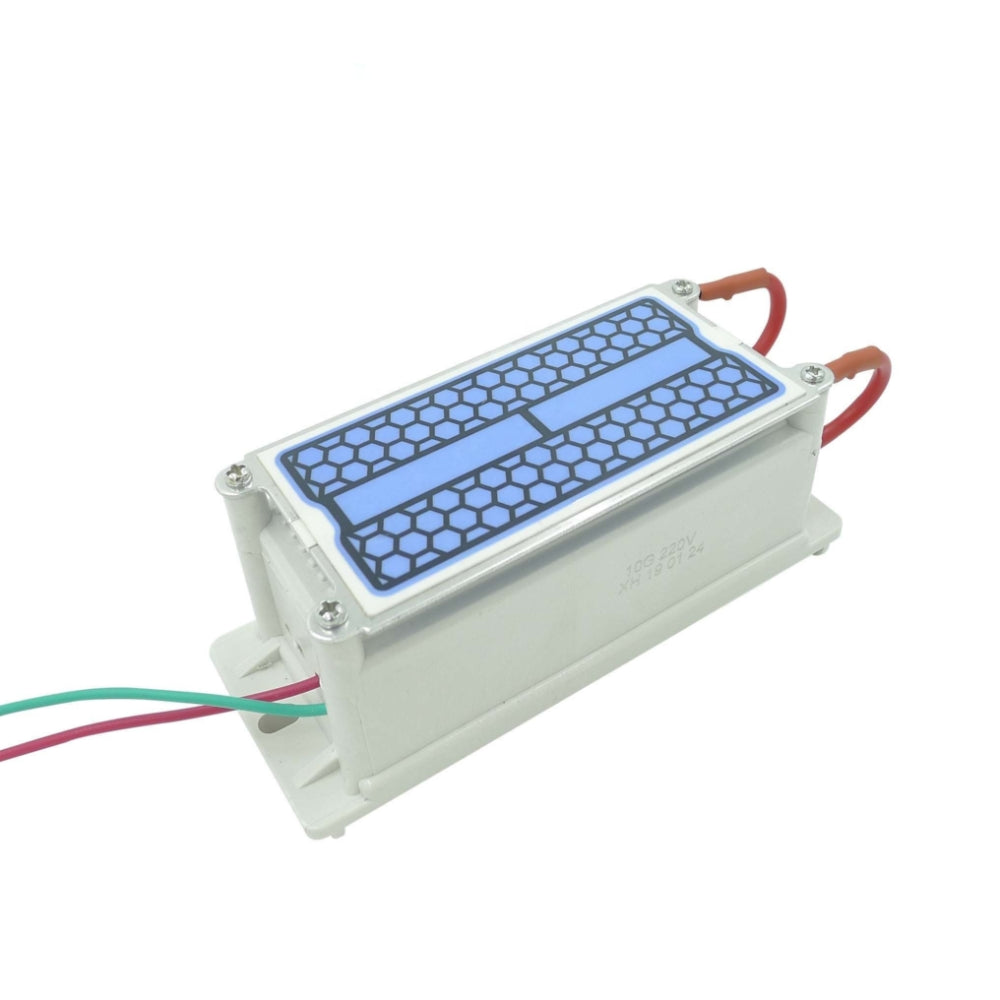

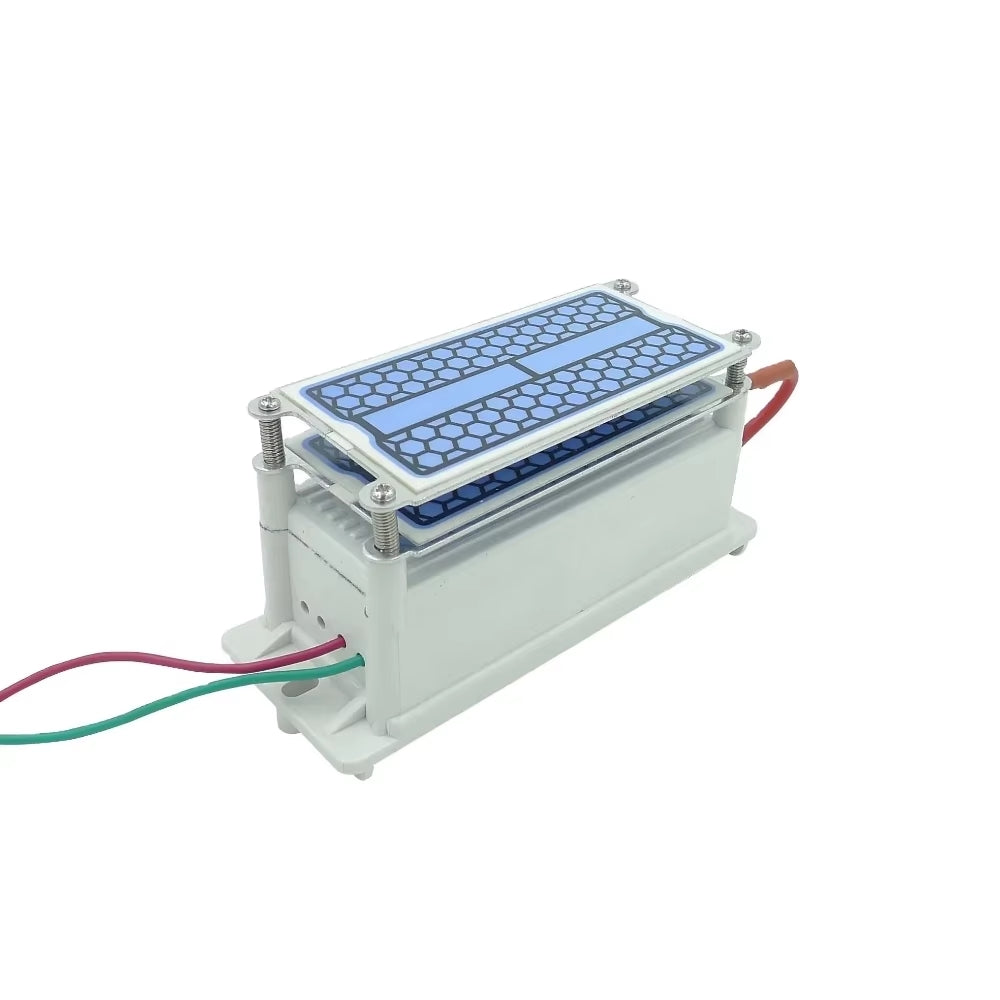

10g/20g/30g/h Double-Sided Ceramic Plate

High Efficiency: Its honeycomb structure provides a larger surface area, promoting the generation and transfer of ozone, thereby improving reaction efficiency.

Lightweight and Durable: The ceramic material has good high-temperature and corrosion resistance, enhancing the product’s durability and stability.

Solder-Free Design: This design reduces the complexity of installation and maintenance, improving ease of use.

Environmentally Friendly: Ozone is a natural form of oxygen with minimal environmental impact and helps purify air and water.

Wide Applications: It can be used in various fields such as water treatment, air purification, and food preservation, meeting different needs.

Anti-Aging: The ceramic material does not easily degrade during use, extending its lifespan.

Good Thermal Stability: It can operate at higher temperatures, adapting to different operating conditions and environments.

PICTURE	SPECIFICATION
	Input Voltage: 220V / 110V Output Voltage:3-4kv Size:150*55*75mm Corona Medium:Ceramic Frequency:18-22KHz Power: 35W Ozone Output: 10g/h
	Input Voltage: 220V / 110V Output Voltage:3-4kv Size:150*55*75mm Corona Medium:Ceramic Frequency:18-22KHz Power: 70W Ozone Output: 20g/h
	Input Voltage: 220V / 110V Output Voltage:3-4kv Size:150*55*75mm Corona Medium:Ceramic Frequency:18-22KHz Power:100W Ozone Output: 30g/h
