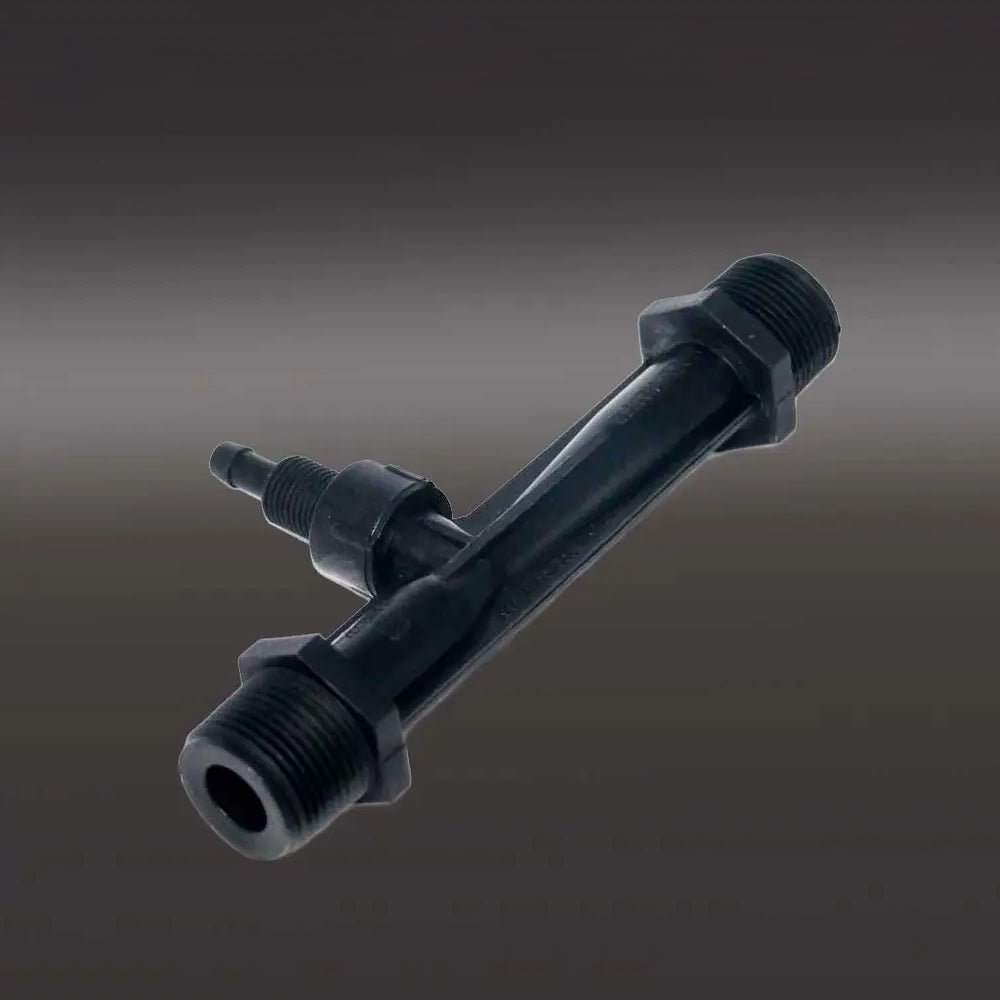

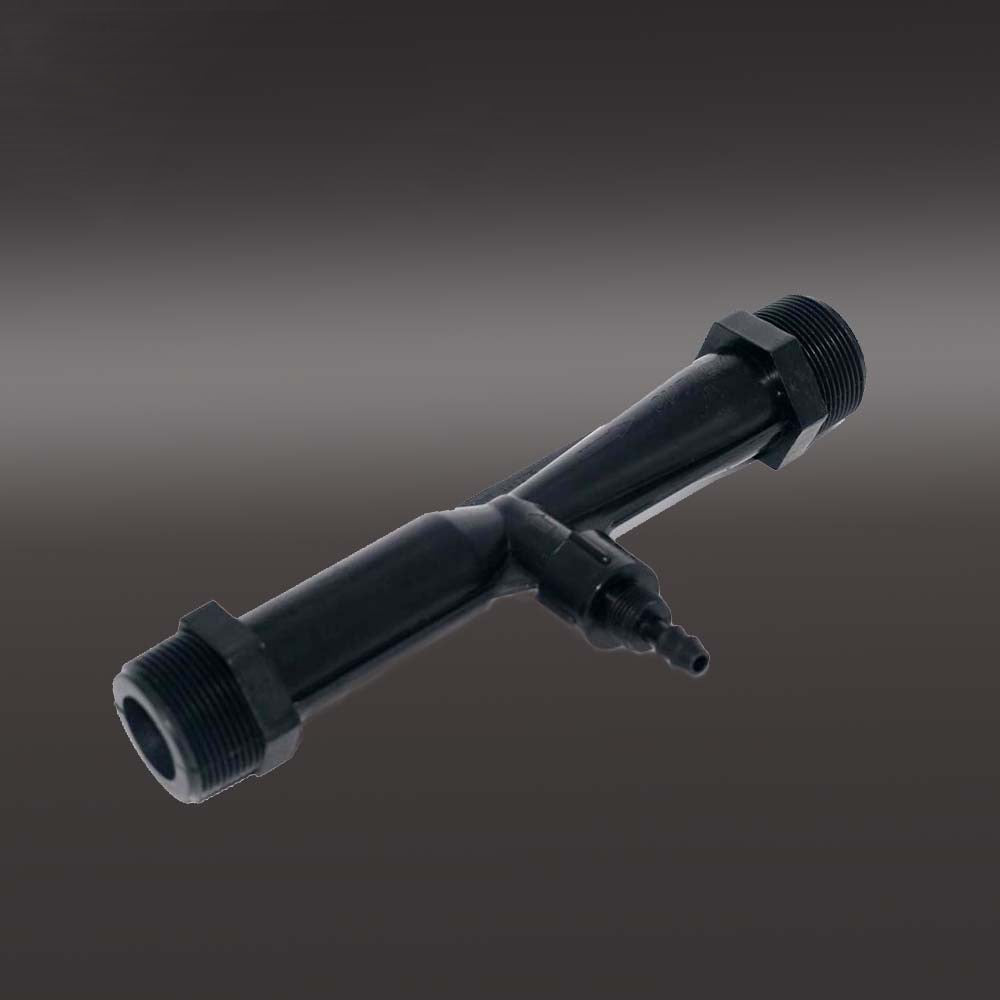

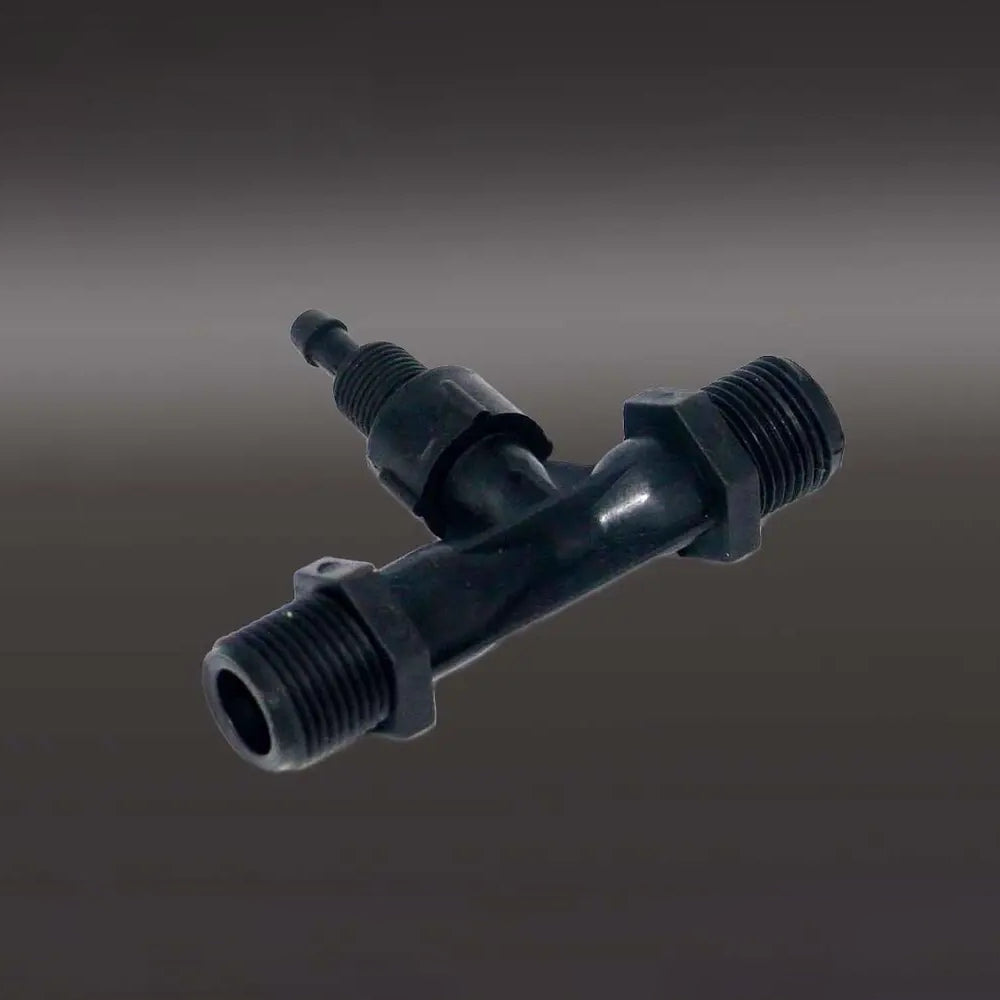

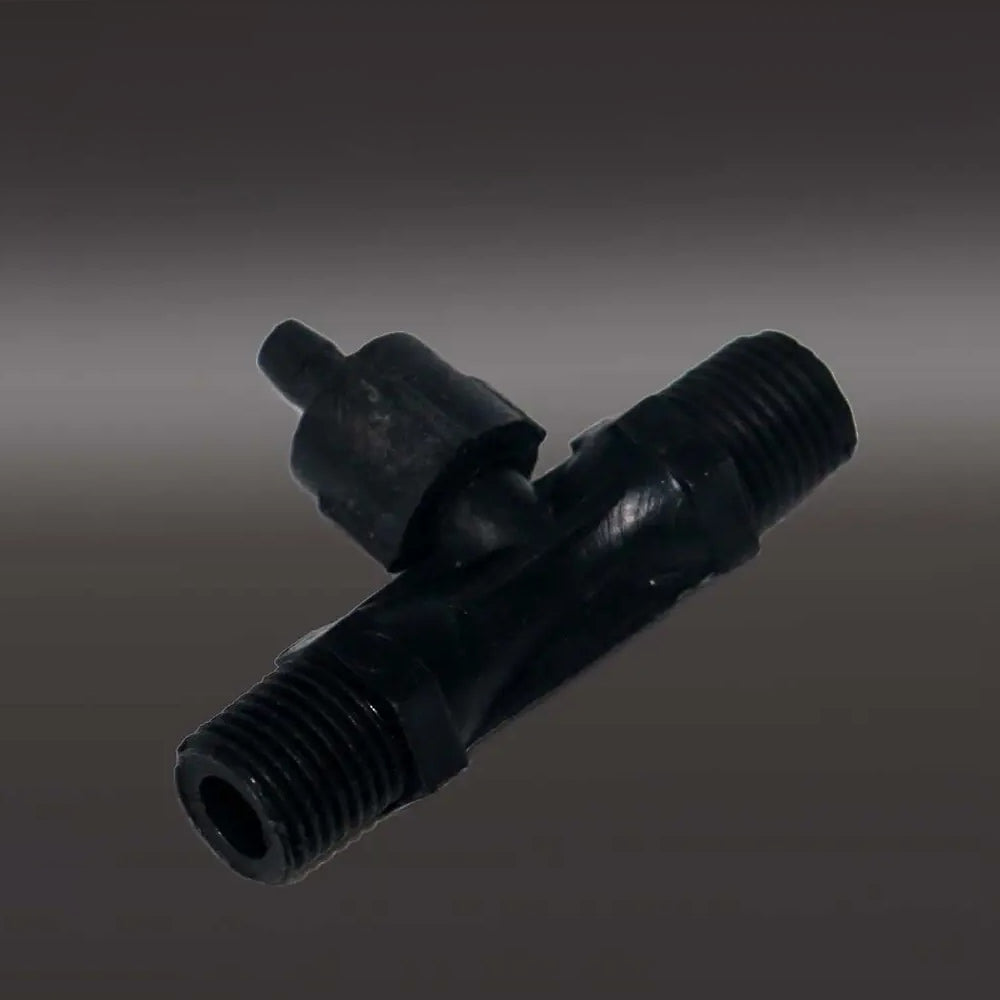

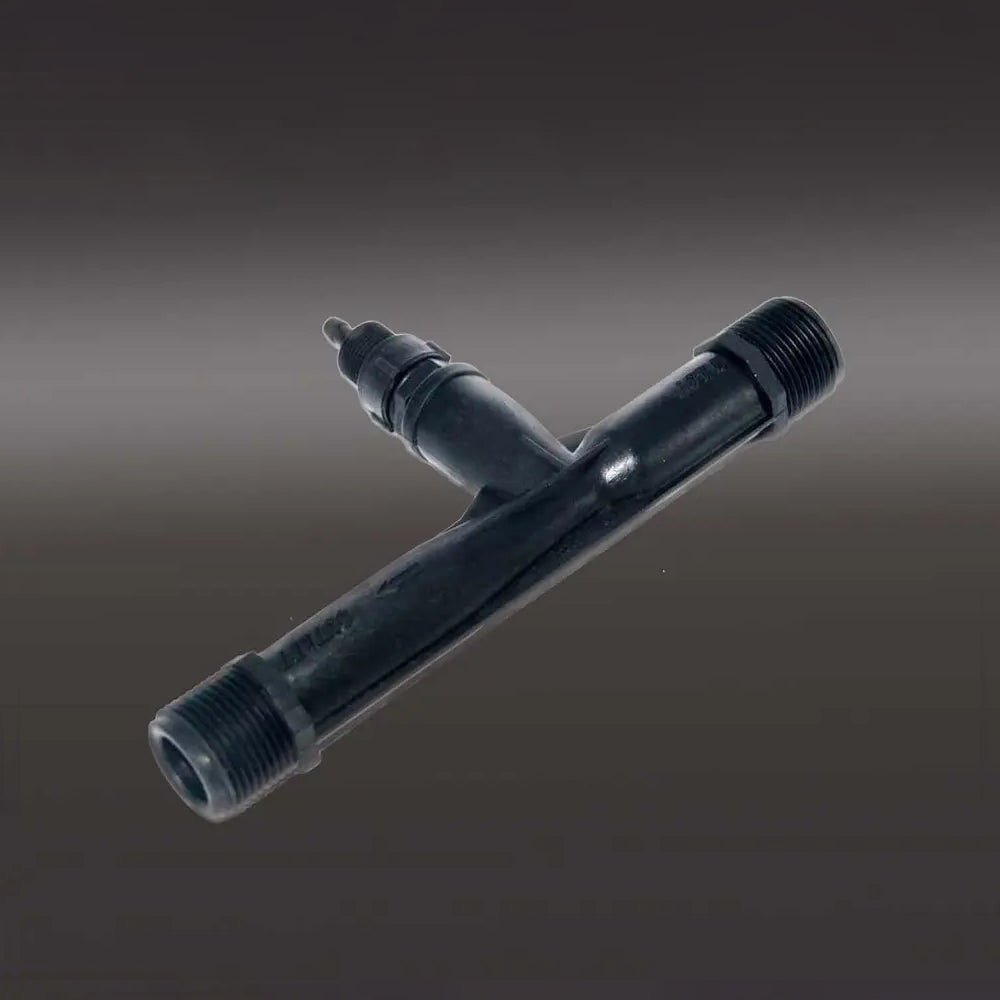

1/4″ to 2″ Diameter PVDF Venturi Injectors
1/4″ to 2″ Diameter PVDF Venturi Injectors
Regular price
$6.08 USD
Regular price
$20.00 USD
Sale price
$6.08 USD
Unit price
/
per
Couldn't load pickup availability
Description:
100% Brand New, High Quality, Good Workmanship
Made in engineering plastic, Sturdy and durable
Excellent chemical resistant to most chemicals
Economical and low-cost option
Specifications:
Power of Water Pump: 0.35-2.2 kW
Input Pressure: from 2.0-5.0 kg/cm2 to 2.0-6.0 kg/cm2
Output Pressure: 0.0-1.0 kg/cm2
Air Suction Capacity: from 0.3-0.5 Nm3 to 37-49 Nm3
Dissolved Oxygen: from 0.1-0.3 kg/h to 2.7-3.5 kg/h
Water Flow: from 0.05-0.25 m3/h to 25-50 m3/h
Applicable Water Temperature: 0-60℃
Water pH Value: 5-11
Requirement for the Liquid: Should be noninflammable, with the length of zonal impurities no longer than 25cm and diameter of granule impurities less than 4 mm in water.
| Model Item | SOI - X250 | SOI - S01 | SOI - S03 | SOI -S20 | SOI - S10 | SOI - S30 |
| Power of water pump(KW) | \ | 0.35 | 0.55 | 0.75 | 1.5 | 2.2 |
| Input pressure (kg/cm2) | 2.0 ~ 5.0 | 2.0 ~ 4.0 | 2.0 ~ 5.0 | 2.0 ~ 5.0 | 2.0 ~ 6.0 | 2.0 ~ 6.0 |
| Output pressure (kg/cm2) | 0.0 ~ 1.0 | 0.0 ~ 1.0 | 0.0 ~ 1.0 | 0.0 ~ 1.0 | 0.0 ~ 1.0 | 0.0 ~ 1.0 |
| Air suction capacity (Nm3/hr) | 0.3 ~ 0.5 | 4 ~ 7 | 7.5 ~ 10 | 11 ~ 15 | 22 ~ 30 | 37 ~ 49 |
| Dissolved oxygen (kgO2/hr) | 0.1 ~ 0.3 | 0.3 ~ 0.5 | 0.5 ~ 0.7 | 0.8 ~ 1.1 | 1.6 ~ 2.2 | 2.7 ~ 3.5 |
| Water flow (m³/h) | 0.05 ~ 0.25 | 0.2 ~ 1 | 1 ~ 3 | 3 ~ 10 | 10 ~ 25 |
25 ~ 50 |
