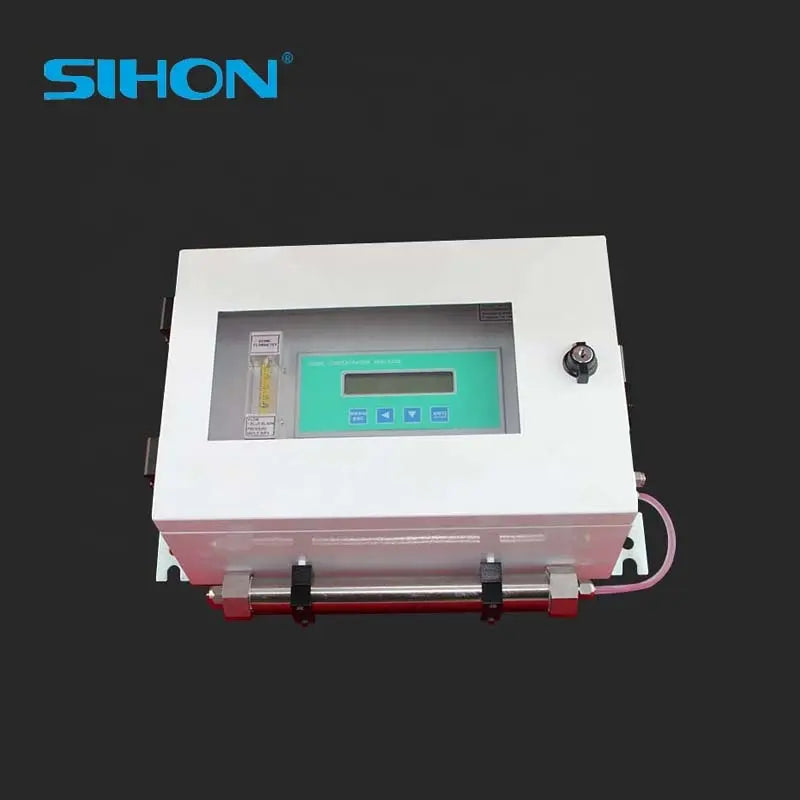

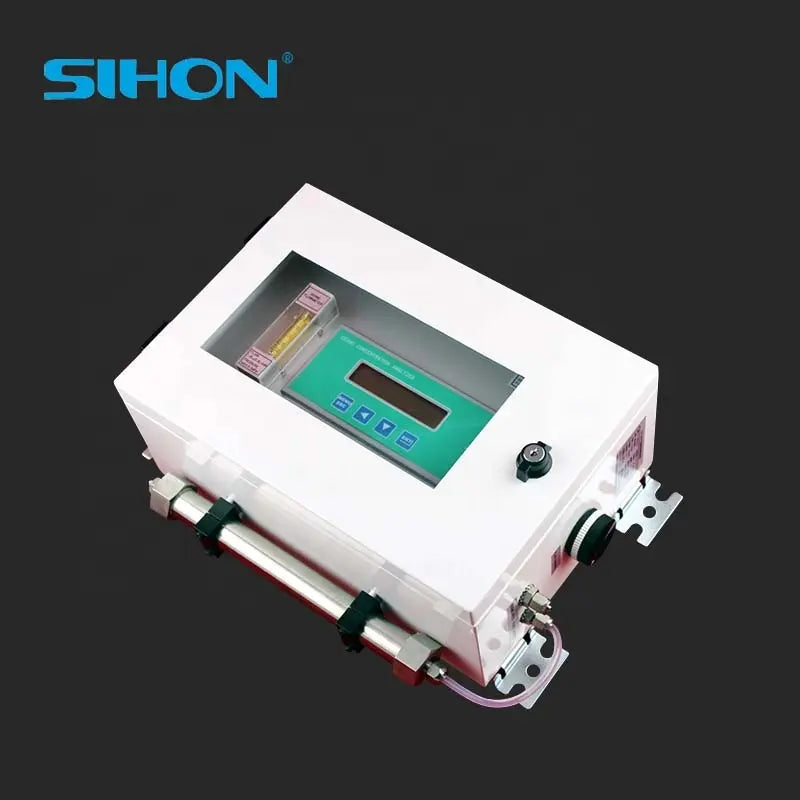

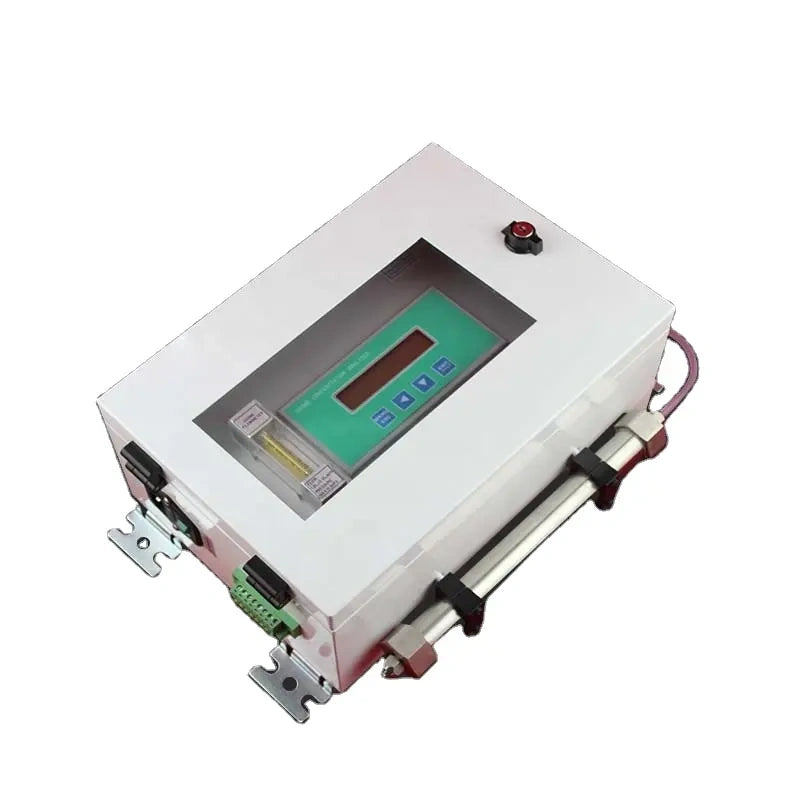

High Precision Ozone Gas Analyzer Ozone Analyzer O3 Analyzer Gas Analyzer

Description:

Technical Parameters and Installation

Detection Principle: Double beam UV absorption method
Measuring Range: 0-200 mg / L (expandable 0-350mg / L)
Display: LCD backlight display
Display Resolution: 0.1mg / L
Gas Flow Rate: 1.2L ± 0.2L/min
Input Gas Pressure: <0.1Mpa
Zero Drift: <0.2% FS
Response Time: < 1 Second
Sampling Port Diameter: Φ6（6mm*4mm）
Detection Accuracy: ± 1% of reading
Communication: RS-485
Output: Differential 4-20mA, linear;
Weight: 6kg
Power Supply: AC 220V
Size: 330*230*160mm
Note: 1mg / L = 467PPM
